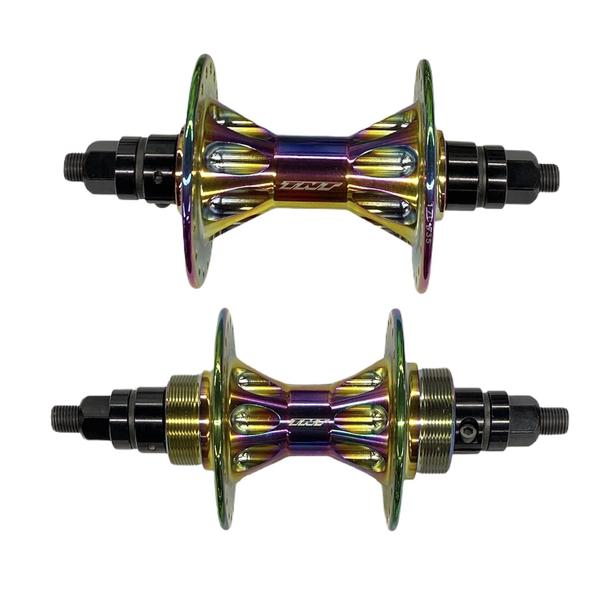

TNT Revolver Flip Flop (Freewheel Style) Hub Set - 36 Hole

Available in 36H only.

The TNT Revolver high flange hub set is the classic big brother to the Derringer. Just like it's little brother the Revolver has Also stood the test of time. Originally introduced in the late 1980ʼs, the Revolver incorporates the same exact internal workings as the Derringer but in # larger flange design. Paired with a high quality freewheel, the Derringer offers an affordable alternative to cassette hubs.

To this day the Revolver remains a trusted and proven product. Some key features include precision sealed bearings, chromoly axle, aluminum bearing collars, aluminum axle nuts, laser etched logo, and flip flop freewheel capability allowing for 13T -22T sizes. 595 Grams.

FRONT HUB DETAILS:

1. Flange Size = 62.00mm (measured from center to center of spoke hole)

2. Flange Distance = 67.00mm (measured from center of flange to center of flange)

3. Center of Hub to Center of flange = 33.50mm

4. Axle Length = 150mm (Chromoly Axle) (3/8″ x 26tpi)

5. Hub Spacing = 100mm (to fit between dropouts)

6. Bearings = 2 Sealed

REAR HUB DETAILS:

1. Flange Size = 62.00mm (measured from center to center of spoke hole)

2. Flange Distance = 54.00mm (measured from center of flange to center of flange)

3. Center of Hub to Center of Flange = 27.00mm

4. Axle Length = 160mm (Chromoly Axle) (3/8″ x 26tpi)

5. Hub Spacing = 110mm (to fit between dropouts)

6. Bearings = 2 Sealed
